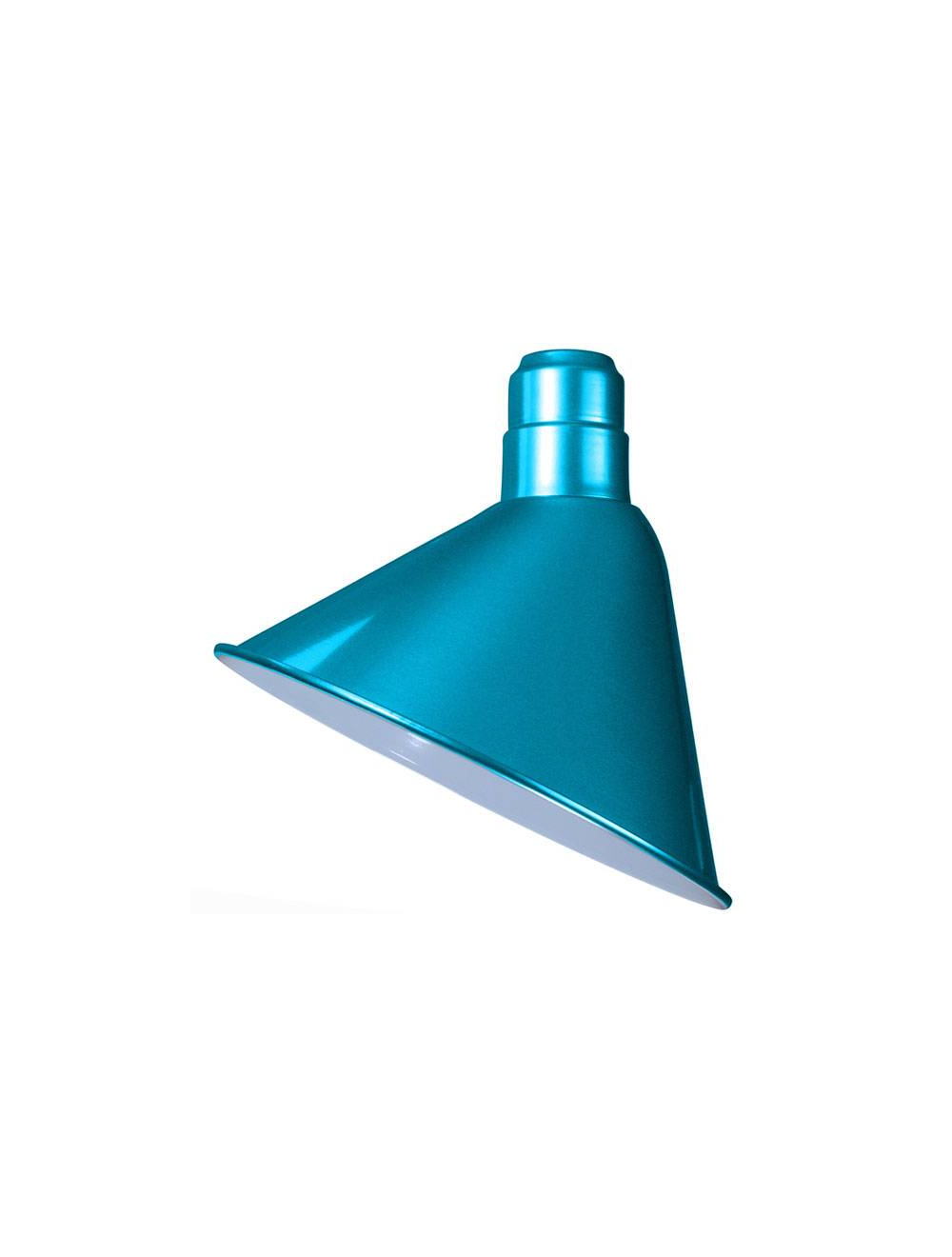

Baselite Angled Shade Sign Light Fixture 14" Diameter A814

Be the first to review this product

Quick Overview

Baselite Angled Shade Sign Light Fixture 14" Diameter A814

Angled shades are essential for sign illumination, entryways, doorways, awnings, wall washing and lighting architectural features. Available sizes are 7", 10", 12" and 14" diameter. Multiple Finishes are available and custom finishes are available.


 Angled Shade Data Sheet


How To Order:
1.
Choose a color.   There are a number of choices and some colors have a surcharge.  View the pdf color guide to see examples of every color. Click the color to see the charge.
2.  Choose a wall mount style.
3.  Choose an accessory.
4.  Choose to add a LED lamp.   We sell only the latest generation LEDs which are extremely efficient with great output and at a better price.  The LEDs are available in 3 color options.

$105.64

Choose to view name and price. Required.

 Color Guide

Painted to Match, Choose to View Price and Dimensions - Not required

Optional items - Not required

Maxlite Omnidirectional LEDs 360° Beam, 25,000 hr, 5 year warranty, Dimmable

* Required Fields

$105.64

Description

Baselite Angled Shade Sign Light Fixture 14" Diameter A814

Angled shades are essential for sign illumination, entryways, doorways, awnings, wall washing and lighting architectural features.  Available sizes are 7", 10", 12" and 14" diameter.   Multiple Finishes are available and custom finishes are available.

FINISH-Five stage pretreatment process, coated with a lead free TGI C polyester powder coat finish. White is standard inside reflectors, Except #49-Galvanized, #62- Anodized Bronze and #63-Iron Rust, Unless specified. Custom colors and Marine are available upon request.

MOUNTING- 1/2” or 3/4” tapped hub is supplied. Top or side mount available. Fixtures are pre-wired with 48” or 96” leads. Available with cord or stem sets.

REFLECTOR- Spun from heavy gauge 1100-0 aluminum, ranging in thickness from .050 to .125. Galvanized is from 20 gauge sheets. Copper is spun from .040 gauge and 110 soft alloy.

LAMP HOLDERS- Accommodates Incandescent medium base porcelain socket, copper shell with nicked plate, rated 250V, 660W.

Specification

Part Number A814
Manufacturer Baselite
Base Type E26 - Medium
Dimensions 14" x 14"
Certifications , ,
Specification Sheet

 Angled Shade Data Sheet

Manufacturer Warranty 3 Year
UPC Code No
Lead Time Build Item 7-10 Days, Add Ons/Changes 2-3 Weeks
