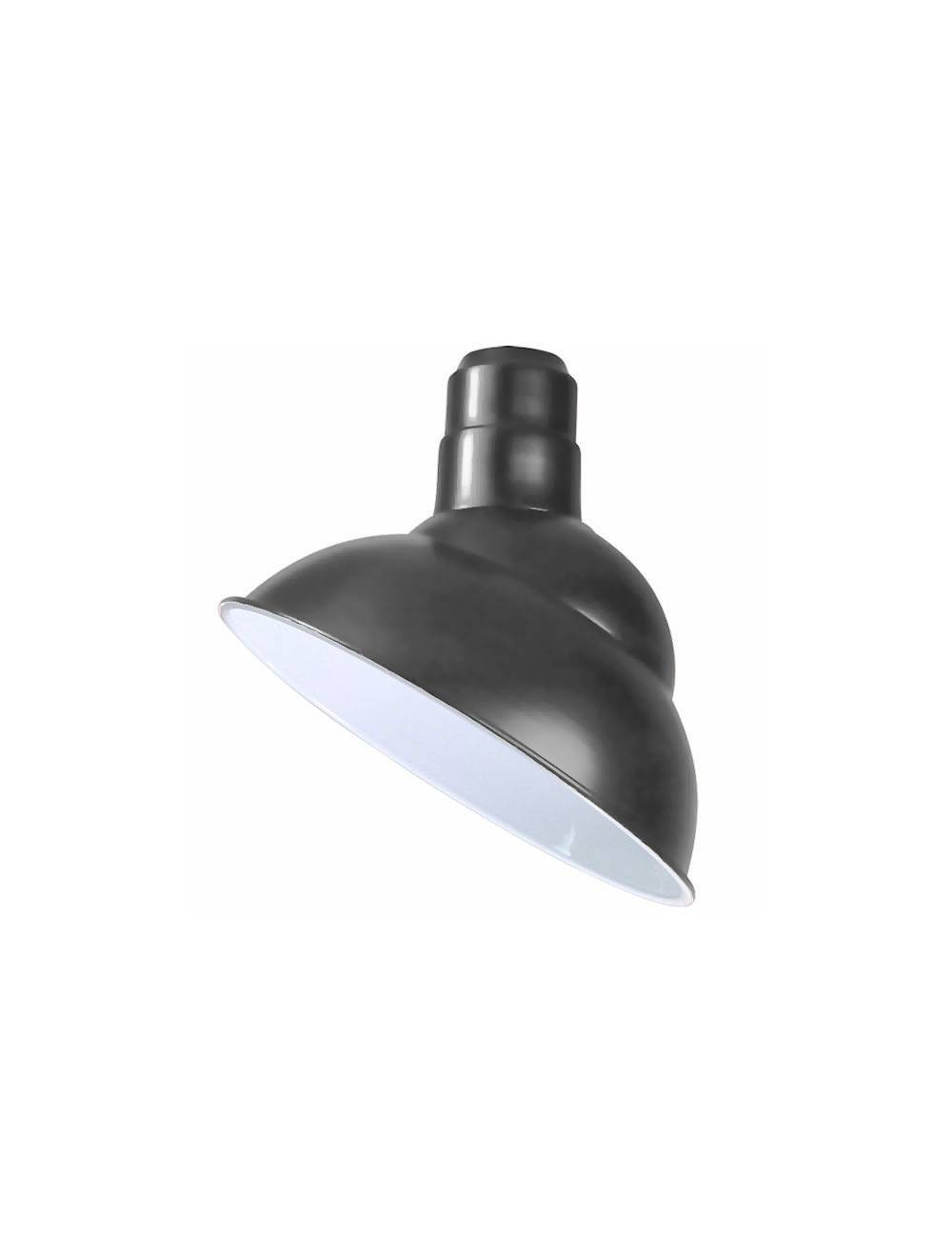

Baselite Emblem Shade Sign Light Fixture 12" Diameter M712

Be the first to review this product

Quick Overview

Baselite Emblem Shade Sign Light Fixture 12" Diameter M712.   Emblem shades are essential for sign illumination, entryways, doorways, awnings, wall washing and lighting architectural features.  Available sizes are 7", 10", 12" and 18" (special order) diameter.   Multiple preset finishes and custom finishes are available.


 Emblem Shade Data Sheet

$88.50

Choose to view name and price. Required.

 Color Guide

Painted to Match, Choose to View Price and Dimensions - Not required

Optional items - Not required

* Required Fields

$88.50

Description

Baselite Emblem Shade Sign Light Fixture 12" Diameter M712.   Emblem shades are essential for sign illumination, entryways, doorways, awnings, wall washing and lighting architectural features.  Available sizes are 7", 10", 12" and 18" (special order) diameter.   Multiple preset finishes and custom finishes are available.

FINISH-Five stage pretreatment process, coated with a lead free TGI C polyester powder coat finish. White is standard inside reflectors, Except #49-Galvanized, #62- Anodized Bronze and #63-Iron Rust, Unless specified. Custom colors and Marine are available upon request.

MOUNTING- 1/2” or 3/4” tapped hub is supplied. Top or side mount available. Fixtures are pre-wired with 48” or 96” leads. Available with cord or stem sets.

REFLECTOR- Spun from heavy gauge 1100-0 aluminum, ranging in thickness from .050 to .125. Galvanized is from 20 gauge sheets. Copper is spun from .040 gauge and 110 soft alloy.

LAMP HOLDERS- Accommodates Incandescent medium base porcelain socket, copper shell with nicked plate, rated 250V, 660W.

Specification

Part Number M712
Manufacturer Baselite
Base Type E26 - Medium
Dimensions 12" x 12"
Certifications , ,
Specification Sheet

 Emblem Shade Data Sheet

Manufacturer Warranty 3 Year
UPC Code No
Lead Time Build Item 7-10 Days, Add Ons/Changes 2-3 Weeks
