Baselite Newport Shade Light Fixture 16" LED UCR216

Be the first to review this product

Quick Overview

Baselite Newport Shade Light Fixture 16" LED UCR216

This fixture uses a standard E26 socket, others available on request, 120v. Multiple LED lamp options available. A standard CFL can be used in this fixture as well. Multiple colors and finishes available.

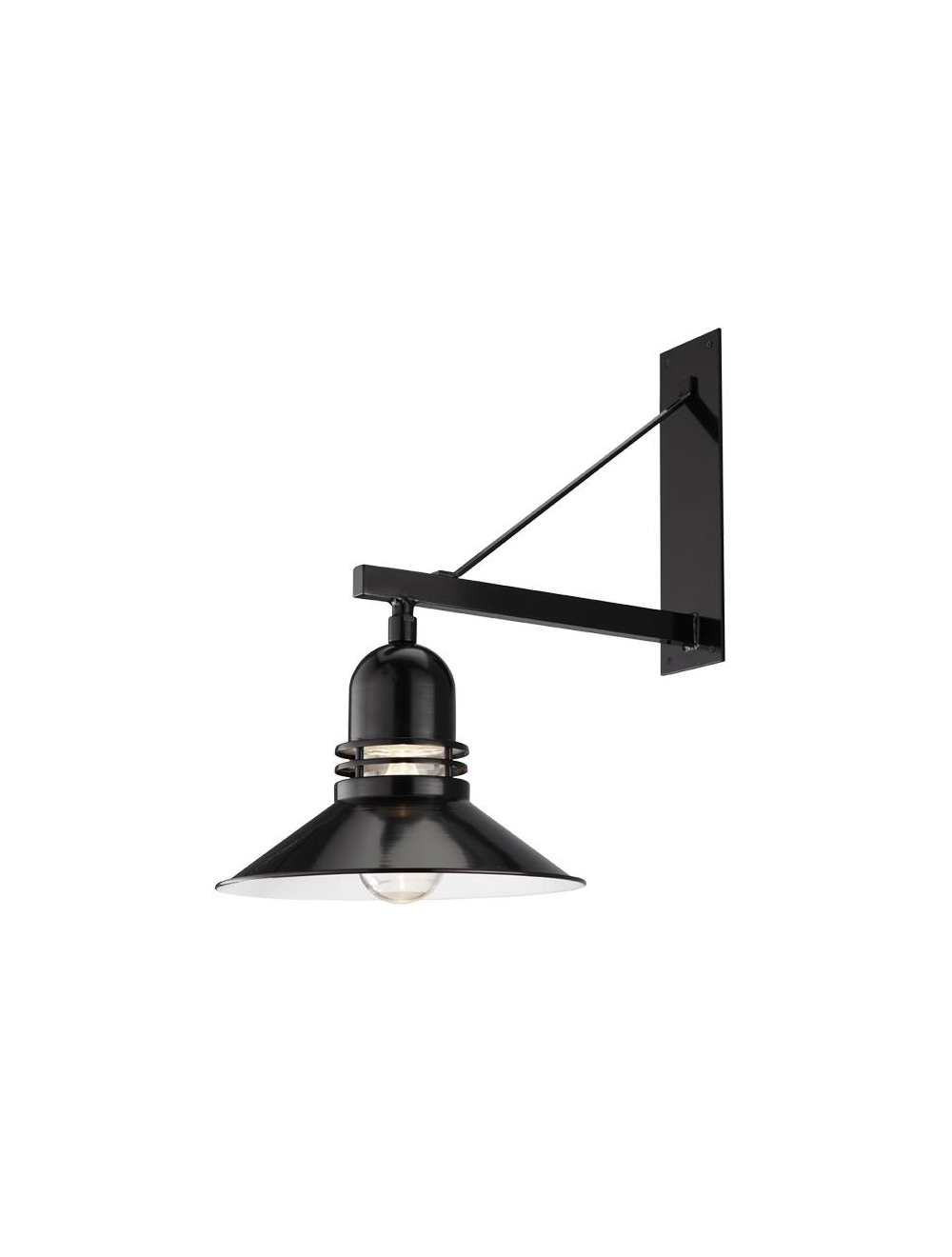

*Fixture shown in #41 - Black with WM7 - Wall mount and CL4 - Glase Option

How To Order
1. Choose a color.   There are a number of choices and some colors have a surcharge.  View the pdf color guide to see examples of every color.  Click the color to see the charge.
2.  Choose a mounting style.  Once chosen other options will appear.
     • No mount means we will ship only the fixture
     • Loose Hanging - Cord and Canopy Mount
     • Fixed Hanging - Pendant Stem Mount
     • Pendant Wall Mount
     • Goosenecks
3.  Choose the specific mount.   Not all available options are listed but most of them are listed.
4.  Choose to add a glass or wire guard option.   If you check the box of either or both, the options will appear.
5.  Choose to add a LED lamp.   We sell only the latest generation LEDs which are extremely efficient with great output and at a better price.  The LEDs are available in 3 color options.



$179.92

Choose to view name and price. Required.

 Color Guide

Choose a mounting style

Optional - Check the box and more options will appear.

Maxlite Omnidirectional LEDs 360° Beam, 25,000 hr, 5 year warranty, Dimmable

* Required Fields

$179.92

Description

Baselite Newport Shade Light Fixture 16" LED UCR216.  This fixture uses a standard E26 socket, others available on request.  120v.  Multiple LED lamp options available.  A standard CFL can be used in this fixture as well.  Multiple colors and finishes available.

FINISH - Five stage pretreatment process, coated with a lead free TGI C polyester powder coat finish. White is standard inside reflectors, Except #49-Galvanized, #62- Anodized Bronze and #63-Iron Rust, Unless specified. Custom colors and Marine are available upon request.

MOUNTING - 1/2” or 3/4” tapped hub is supplied. Top or side mount available. Fixtures are pre-wired with 48” or 96” leads. Available with cord or stem sets.

REFLECTOR - Spun from heavy gauge 1100-0 aluminum, ranging in thickness from .050 to .125. Galvanized is from 20 gauge sheets. Copper is spun from .040 gauge and 110 soft alloy.

LAMP HOLDERS - Accommodates Incandescent medium base porcelain socket, copper shell with nicked plate, rated 250V, 660W.

Specification

Part Number UCR216
Manufacturer Baselite
Base Type E26 - Medium
Dimensions 12" x 16"
Certifications , ,
Specification Sheet

 Newport Series Data Sheet

Manufacturer Warranty 3 Year
UPC Code No
Lead Time Build Item 2-3 Weeks
