Baselite Newport Shade Light Fixture 18" LED UCR18

Quick Overview

Baselite Newport Shade Light Fixture 18" LED UCR18

This fixture uses a standard E26 socket, others available on request, 120v. Multiple LED lamp options available. A standard CFL can be used in this fixture as well. Multiple colors and finishes available.

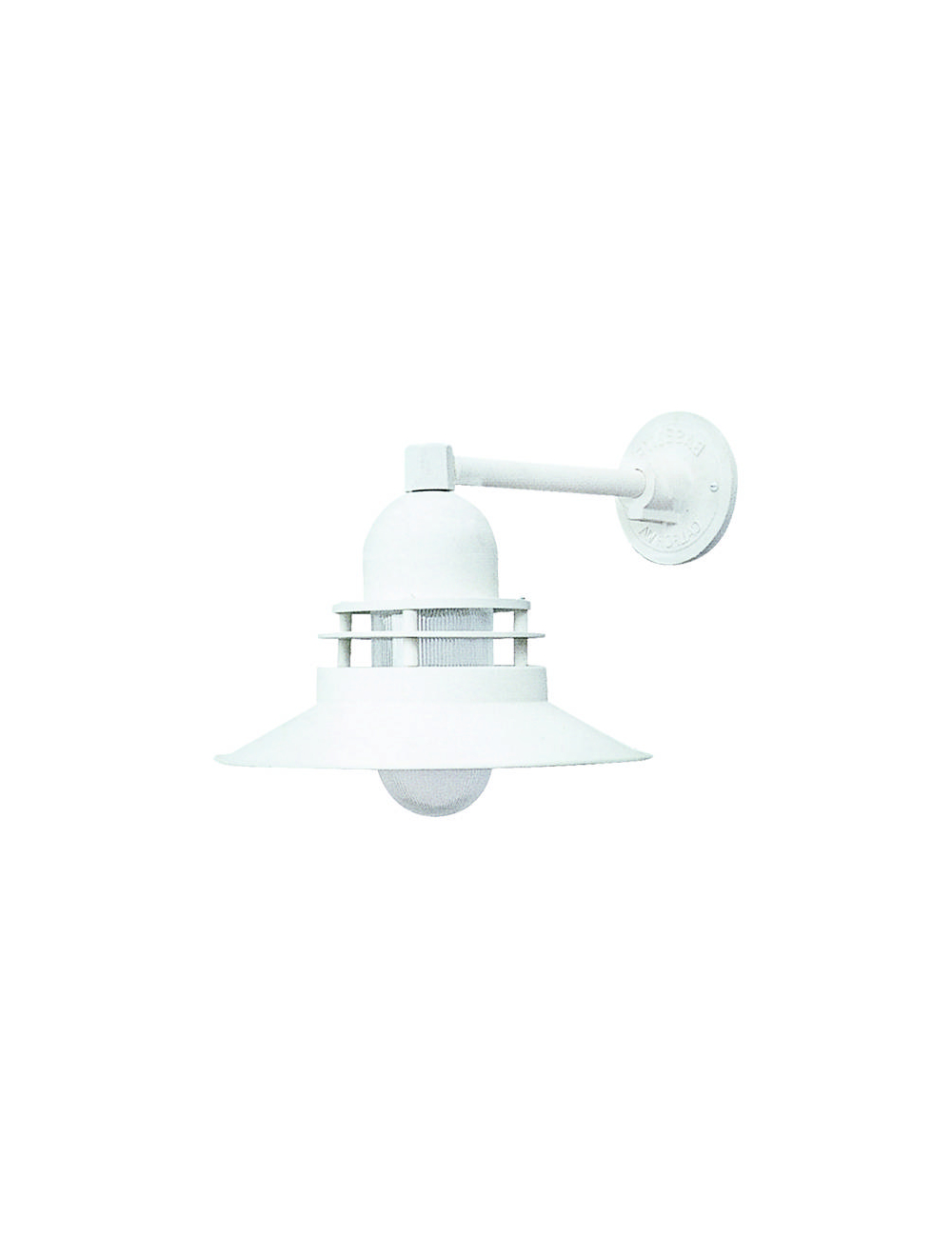

*Fixture shown in #54 - Stucco Finish with B10 Wall Mount and PR3 - Glase Option

How To Order:
1. Choose a color. There are a number of choices and some colors have a surcharge. View the pdf color guide to see examples of every color. Click the color to see the charge.
2.  Choose a mounting style. Once chosen other options will appear.
• No mount means we will ship only the fixture
• Loose Hanging - Cord and Canopy Mount
• Fixed Hanging - Pendant Stem Mount
• Pendant Wall Mount
• Goosenecks
3.  Choose the specific mount. Not all available options are listed but most of them are listed.
4.  Choose to add a glass or wire guard option. If you check the box of either or both, the options will appear.
5.  Choose to add a LED lamp. We sell only the latest generation LEDs which are extremely efficient with great output and at a better price. The LEDs are available in 3 color options.

$185.64

Color Select * Choose to view name and price. Required. Color Guide

Mounting Type * Choose a mounting style

Glass, Lens and Wire Guard Options Optional - Check the box and more options will appear.

Glass Jars, Cast Guards & Small Wire Guards
Fixture Wire Guards
Glass/Poly Carbonate Lens

Lamp Options * Maxlite Omnidirectional LEDs 360° Beam, 25,000 hr, 5 year warranty, Dimmable

No Lamp - I will provide my own
Maxlite 6 Watt LED 480 Lumens - Choose Color When Selected +$3.65
Maxlite 9 Watt LED 800 Lumens - Choose Color When Selected +$3.65
Maxlite 11 Watt LED 1100 Lumens - Choose Color When Selected +$3.65
Maxlite 15 Watt LED 1600 Lumens - Choose Color When Selected +$5.65
Satco 20 Watt LED 2900 Lumens - 20WA21/LED/HID Hi-Pro LED +$28.50
Maxlite 4.5 Watt LED Vintage Filament 400 Lumens 2700K +$7.11
Maxlite 6.5 Watt LED Vintage Filament Silver Bowl 700 Lumens 2700K +$8.24

* Required Fields

$185.64

Qty:

-OR-

| Compare

Description

Baselite Newport Shade Light Fixture 18" LED UCR18. This fixture uses a standard E26 socket, others available on request. 120v. Multiple LED lamp options available. A standard CFL can be used in this fixture as well. Multiple colors and finishes available.

FINISH - Five stage pretreatment process, coated with a lead free TGI C polyester powder coat finish. White is standard inside reflectors, Except #49-Galvanized, #62- Anodized Bronze and #63-Iron Rust, Unless specified. Custom colors and Marine are available upon request.

MOUNTING - 1/2” or 3/4” tapped hub is supplied. Top or side mount available. Fixtures are pre-wired with 48” or 96” leads. Available with cord or stem sets.

REFLECTOR - Spun from heavy gauge 1100-0 aluminum, ranging in thickness from .050 to .125. Galvanized is from 20 gauge sheets. Copper is spun from .040 gauge and 110 soft alloy.

LAMP HOLDERS - Accommodates Incandescent medium base porcelain socket, copper shell with nicked plate, rated 250V, 660W.

Specification

Part Number	UCR18
Manufacturer	Baselite
Base Type	E26 - Medium
Dimensions	18" x 11"
Certifications	, ,
Specification Sheet	Newport Series Data Sheet
Manufacturer Warranty	3 Year
UPC Code	No
Lead Time	Build Item 2-3 Weeks
