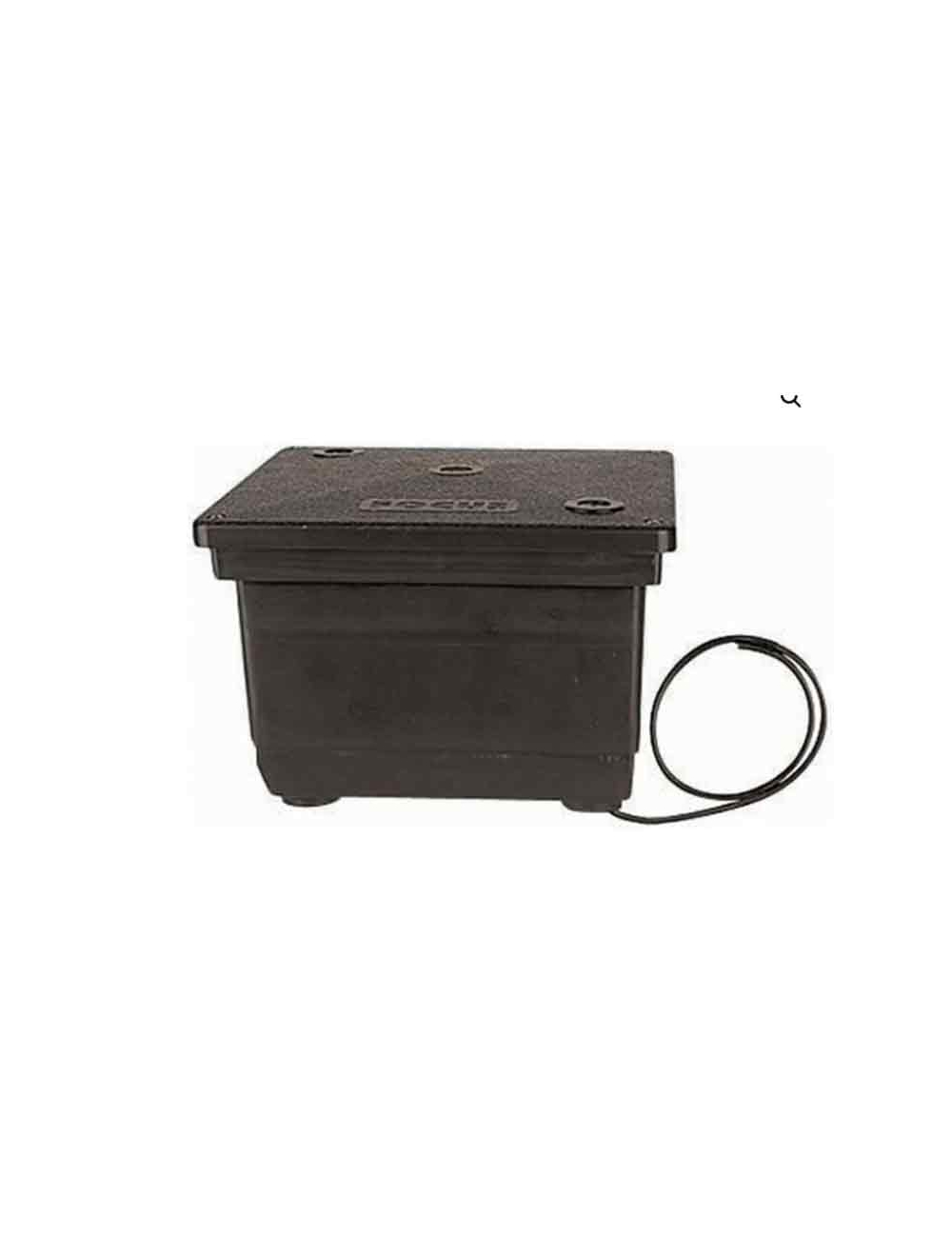

Focus DBS-12-8JB Direct Burial Junction Box

The Focus direct burial junction boxes are rugged, weatherproof enclosures designed to securely house electrical connections underground, ensuring reliable protection and longevity in harsh outdoor environments.

$144.12

Lead Time

Build Item 7-10 Days

Return Policy

30 Days +Fee Terms

SKU

DBS-12-8JB

Details

Specifications:

• Bronze high temperature fiberglass reinforced composite box and cover (heavy duty)
• Nema 12: below grade enclosure for direct burial applications
• UL 1838 and UL 1598 certified
• 1/2" NPS & 3/4" NPS bottom hubs for line voltage input & feed through. Ships standard with 2x 1/2" NPS holes; one open one plugged
• 1/2" NPS hubs on cover for fixture and or photocell mounting (consult factory for details)
• Neoprene sponge gasket to keep enclosure dry, for DBR-55-JB O-RING: High-temperature red silicone
• DBS-12-8JB & DBS-97-JB Covers secured with #10 3/4" Flat head stainless steel Phillips screws, DBS-66-JB, DBR-79-JB & DBR-55-JB Covers secured with 10-24 X 3/4" Flat head stainless steel Phillips screws
• Beveled Top to allow for drainage

Warranty:

• 3 year warranty

Installation Notes:

• All Direct Burial Junction boxes must be accessible for servicing. Install at highest grade to allow water to run off. Usually 1/2” or 1” higher than grade

• Must be installed away from standing water
