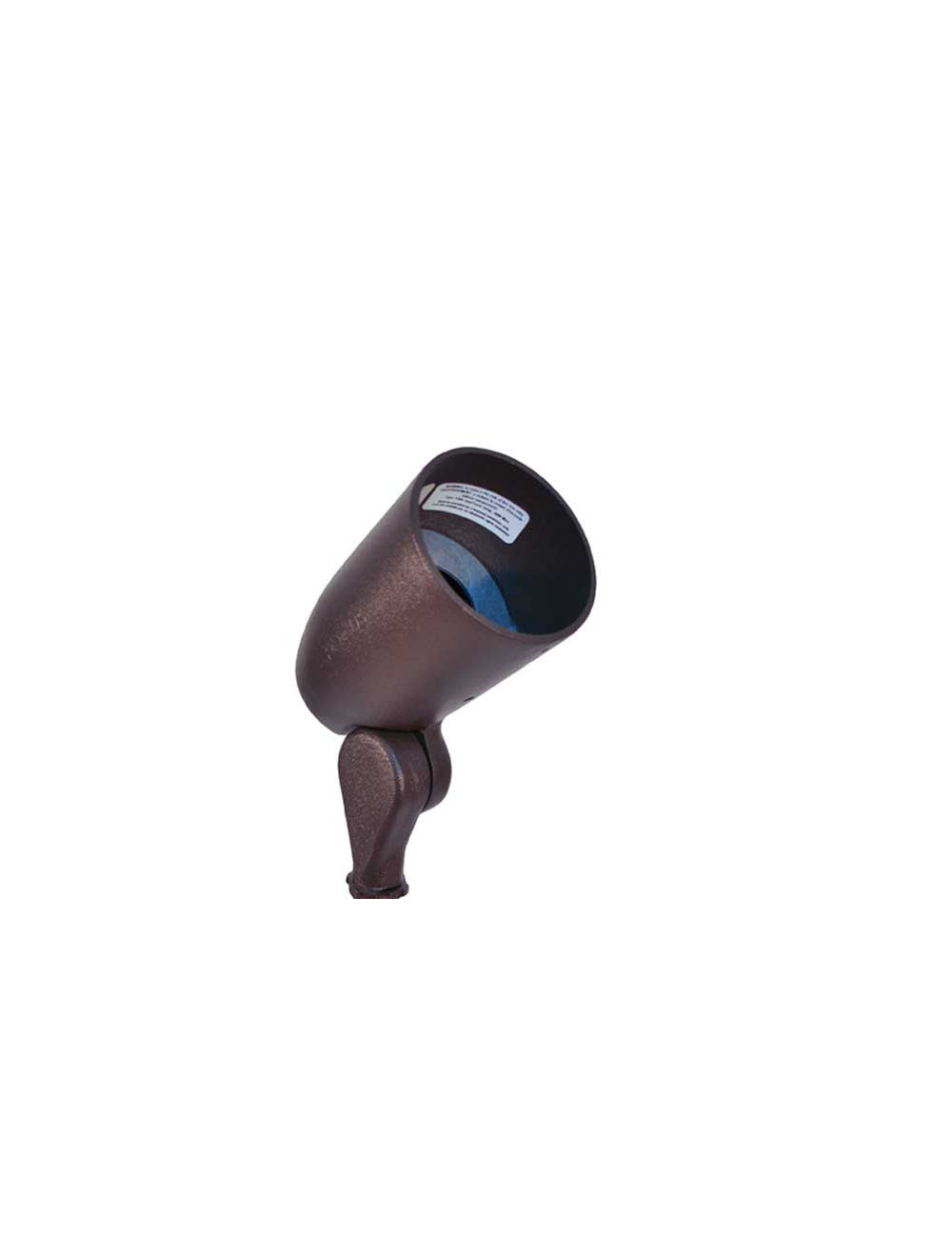

Focus DL-20 Aluminum Bullet Directional LED PAR20 Light

Focus DL-20 Aluminum Bullet Directional LED PAR20 Light , available lamps are 6 watt LED, 7 watt LED or 9 watt LED. Available in multiple aluminum and brass finishes.
$67.59
Lead Time
Build Item 1-2 Weeks
SKU
DL-20

Focus DL-20 Aluminum Bullet Directional LED PAR20 Light

CONSTRUCTION: Cast aluminum, cast brass or composite bullet; matching heavy duty cast aluminum, brass or composite adjustable swivel

LENS: None supplied on standard model and -AC model. High impact clear tempered convex glass included on -EC models and as an option on -AC models (add -L)

O-RING: High temperature red silicone

LAMP: Use PAR20 lamps (50w max)

LAMP OPTIONS: We recommend Maxlite 6w PAR16 (slightly smaller, helps with heat dissipation)  also available Arrow LED with 50,000 hour average rating.

SOCKET: High temperature ceramic medium base with 250°C silicone lead wires

WIRING: Standard 120v Black, White and Ground 9" lead wires

MOUNTING: None supplied. See Mounting Accessories below for options

FINISH: Aluminum-Black texture polyester powder coat. Optional finishes available. Brass-Unfinished brass. Optional finishes available.

LAMP OPTIONS

CATALOG NO.

DESCRIPTION

EST. SHIP WEIGHT

DL-20-NL-BLT

Cast Aluminum PAR20 Bullet

2.0 lbs.

DL-20-NL-BRS

Cast Brass PAR20 Bullet

3.0 lbs.

CDL-20-NL

Composite PAR20 Bullet

2.0 lbs.

DL-20-NL-EC-BLT

Cast Aluminum PAR20 Bullet, Extension Collar, Convex Lens

3.0 lbs.

DL-20-NL-EC-BRS

Cast Brass PAR20 Bullet, Extension Collar, Convex Lens

4.0 lbs.

CDL-20-NL-EC

Composite PAR20 Bullet, Extension Collar, Convex Lens

3.0 lbs.

DL-20-NL-AC-BLT

Cast Aluminum PAR20 Bullet, Angle Collar

3.0 lbs.

DL-20-NL-AC-BRS

Cast Brass PAR20 Bullet, Angle Collar

5.0 lbs.

CDL-20-NL-AC

Composite PAR20 Bullet, Angle Collar

3.0 lbs.

More Information
Part Number DL-20-NL-BLT
Manufacturer Focus Industries
Watts 6 Watts
Lumens 370
Lumens Per Watt 62
CRI 80
Color Temperature 3000 Kelvin
Input Voltage 120V
Dimmable Yes
Rated Life 40,000 hours +
Dimensions 5.25" x 3.5"
Certifications , ETL Listed,
Warranty 3 Year
Specification Sheet

 DL-20 Data Sheet

Lead Time Build Item 1-2 Weeks
