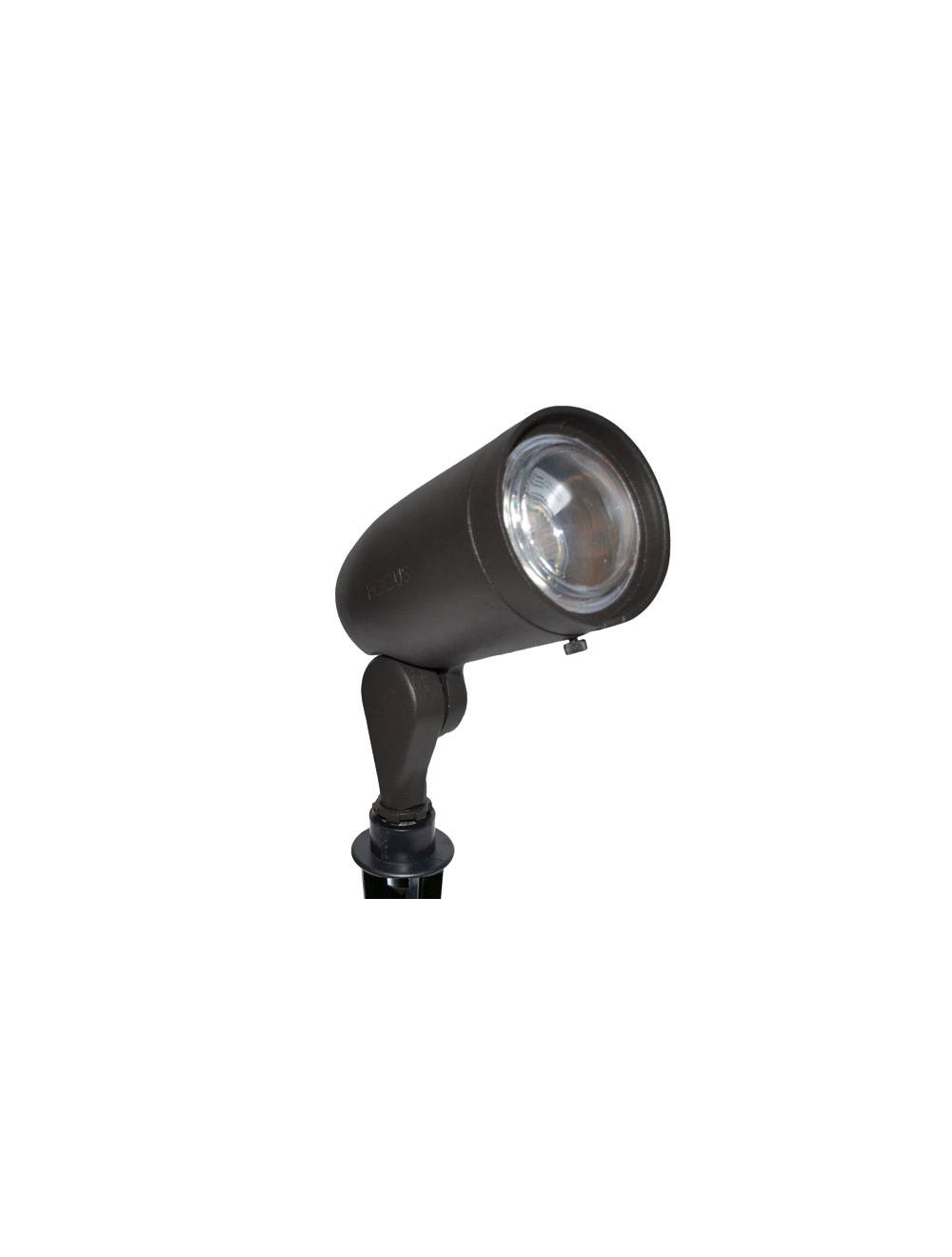

Focus DL-20 Aluminum Bullet Directional LED MR16 base Light
CONSTRUCTION: Cast aluminum, cast brass or composite Bullet; matching heavy duty cast aluminum, brass or composite adjustable swivel; matching extension collar with lens
LENS: High impact clear tempered convex glass
O-RING: High temperature red silicone
LAMP: Use only MR16 pin based lamps (50w max)
SOCKET: High temperature ceramic GU5.3 bi-pin with 250°C silicone lead wires
WIRING: Black 3 foot 18/2 zip cord from base of fixture (12v only) For 25 foot 16/2 fixture lead wire add -25F to catalog number.
CONNECTION: FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only)
MOUNTING: FA-03 black 9" ABS stake threaded 1/2" NPS
FINISH: Aluminum-Black texture polyester powder coat. Optional finishes available. Brass-Unfinished brass. Optional finishes available.
LAMP OPTIONS: 20w MR16 FL(BAB) 5000 hours average rating (50w max); 4w ARROW LED 50,000 average rating, Maxlite 5 watt MR16 LED lamp, 25,000 hour L70 400 lumens (in specs) - ships separately, must be installed on site
CATALOG NO. |
DESCRIPTION |
EST. SHIP WEIGHT |
---|---|---|
DL-20-NL-BLT |
Cast Aluminum MR16 Bullet |
2.0 lbs. |
DL-20-NL-BRS |
Cast Brass MR16 Bullet |
3.0 lbs. |
CDL-20-NL |
Composite MR16 Bullet |
2.0 lbs. |
DL-20-NL-EC-BLT |
Cast Aluminum MR16 Bullet, Extension Collar, Convex Lens |
3.0 lbs. |
DL-20-NL-EC-BRS |
Cast Brass MR16 Bullet, Extension Collar, Convex Lens |
4.0 lbs. |
CDL-20-NL-EC |
Composite MR16 Bullet, Extension Collar, Convex Lens |
3.0 lbs. |
DL-20-NL-AC-BLT |
Cast Aluminum MR16 Bullet, Angle Collar |
3.0 lbs. |
DL-20-NL-AC-BRS |
Cast Brass MR16 Bullet, Angle Collar |
5.0 lbs. |
CDL-20-NL-AC |
Composite MR16 Bullet, Angle Collar |
3.0 lbs. |
Part Number | DL-20-MR16-NL-BLT |
---|---|
Manufacturer | Focus Industries |
Watts | 5 Watts |
Lumens | 400 |
Lumens Per Watt | 80 |
CRI | 81 |
Color Temperature | 2700 Kelvin |
Input Voltage | 12V |
Dimmable | No |
Rated Life | 25,000 hours + |
Dimensions | 5.25" x 3.5" |
Certifications | , , |
Warranty | 3 Year |
Specification Sheet | |
Lead Time | Build Item 1-2 Weeks |
