Focus DL-20-MR16-BRS Brass Bullet Directional LED MR16 base Light

Be the first to review this product

Quick Overview

Focus DL-20-MR16-BRS Brass Bullet Directional LED MR16 base Light , available lamps are standard 20 watt MR16,4 watt LED MR16 or 5 watt LED. Available in multiple aluminum and brass finishes.
$115.02

Choose a lamp option

Please choose finish to view name & price (acid finish is normally a 2 week lead time), required.

 Focus Color Guide

Not required, but looks really good.

Color lenses add style to illumination

* Required Fields

$115.02

Description

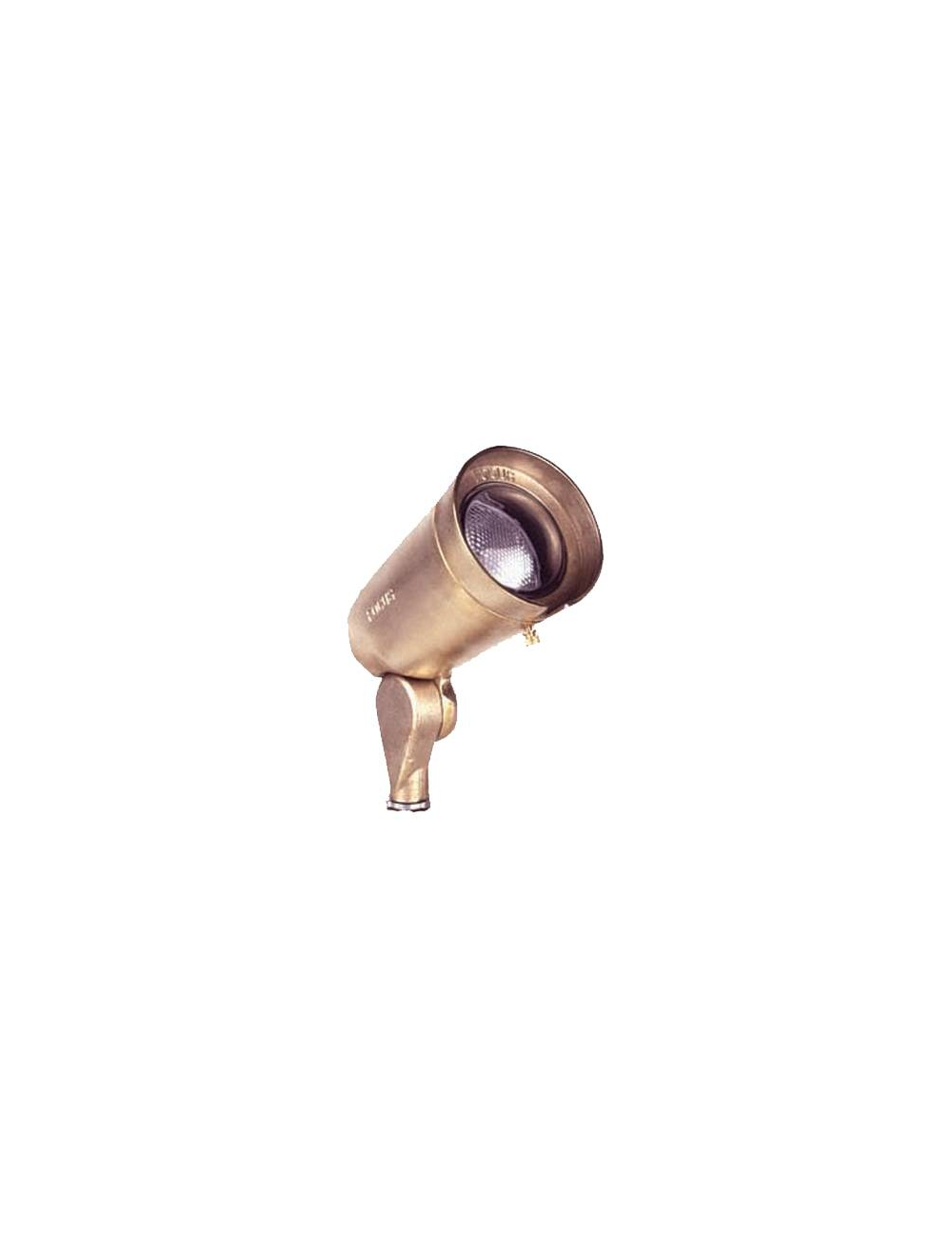

Focus DL-20-MR16-BRS Brass Bullet Directional LED MR16 base Light

CONSTRUCTION: Cast aluminum, cast brass or composite Bullet; matching heavy duty cast aluminum, brass or composite adjustable swivel; matching extension collar with lens

LENS: High impact clear tempered convex glass

O-RING: High temperature red silicone

LAMP: Use only MR16 pin based lamps (50w max)

SOCKET: High temperature ceramic GU5.3 bi-pin with 250°C silicone lead wires

WIRING: Black 3 foot 18/2 zip cord from base of fixture (12v only) For 25 foot 16/2 fixture lead wire add -25F to catalog number.

CONNECTION: FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only)

MOUNTING: FA-03 black 9" ABS stake threaded 1/2" NPS

FINISH: Aluminum-Black texture polyester powder coat. Optional finishes available. Brass-Unfinished brass. Optional finishes available.

LAMP OPTIONS: 20w MR16 FL(BAB) 5000 hours average rating (50w max); 4w ARROW LED 50,000 average rating, Maxlite 5 watt MR16 LED lamp, 25,000 hour L70 400 lumens (in specs) - ships separately, must be installed on site

CATALOG NO.

DESCRIPTION

EST. SHIP WEIGHT

DL-20-MR16-BLT

Cast Aluminum MR16 Bullet

2.0 lbs.

DL-20-MR16-BRS

Cast Brass MR16 Bullet

3.0 lbs.

CDL-20-MR16

Composite MR16 Bullet

2.0 lbs.

DL-20-MR16-EC-BLT

Cast Aluminum MR16 Bullet, Extension Collar, Convex Lens

3.0 lbs.

DL-20-MR16-EC-BRS

Cast Brass MR16 Bullet, Extension Collar, Convex Lens

4.0 lbs.

CDL-20-MR16-EC

Composite MR16 Bullet, Extension Collar, Convex Lens

3.0 lbs.

DL-20-MR16-AC-BLT

Cast Aluminum MR16 Bullet, Angle Collar

3.0 lbs.

DL-20-MR16-AC-BRS

Cast Brass MR16 Bullet, Angle Collar

5.0 lbs.

CDL-20-MR16-AC

Composite MR16 Bullet, Angle Collar

3.0 lbs.

Specification

Part Number DL-20-MR16-BRS
Manufacturer Focus Industries
Watts 7 Watts
Lumens 450
Lumens Per Watt 67
CRI 80
Color Temperature 3000 Kelvin
Beam Angle 40°
Input Voltage 12V
Dimmable No
Rated Life 25,000 hours +
Dimensions 5.25" x 3.5"
Certifications , ETL Listed,
Manufacturer Warranty 3 Year
Specification Sheet

 DL-20 Data Sheet

Lead Time In Stock - Quick Ship, Add Ons/Changes 7-10 Days
