Focus PL-05 Cast Aluminum 5.5" Mushroom Pathway LED Light

Be the first to review this product

Quick Overview

Focus PL-05 Cast Aluminum 5.5" Mushroom Pathway LED Light


Pathway LED lights are the perfect for illuminating walkways, pathways, terraces, patios and more.  With exclusive LED technology, the lights use 1/4 of the energy, put out 6x the light and last 40x as long as traditional lights.


Our LED Advantage


The biggest difference between our LED lights is they feature replaceable LEDs using common socket types.  Most other companies and brands have LEDs permanently attached or hardwired which can be difficult or impossible to replace.  Our LED advantage system is as easy as changing the lamp.

$58.29

Choose your voltage

Choose finish to view name and price, required.

 Focus Color Guide

Not required, but looks really good.

* Required Fields

$58.29

Description

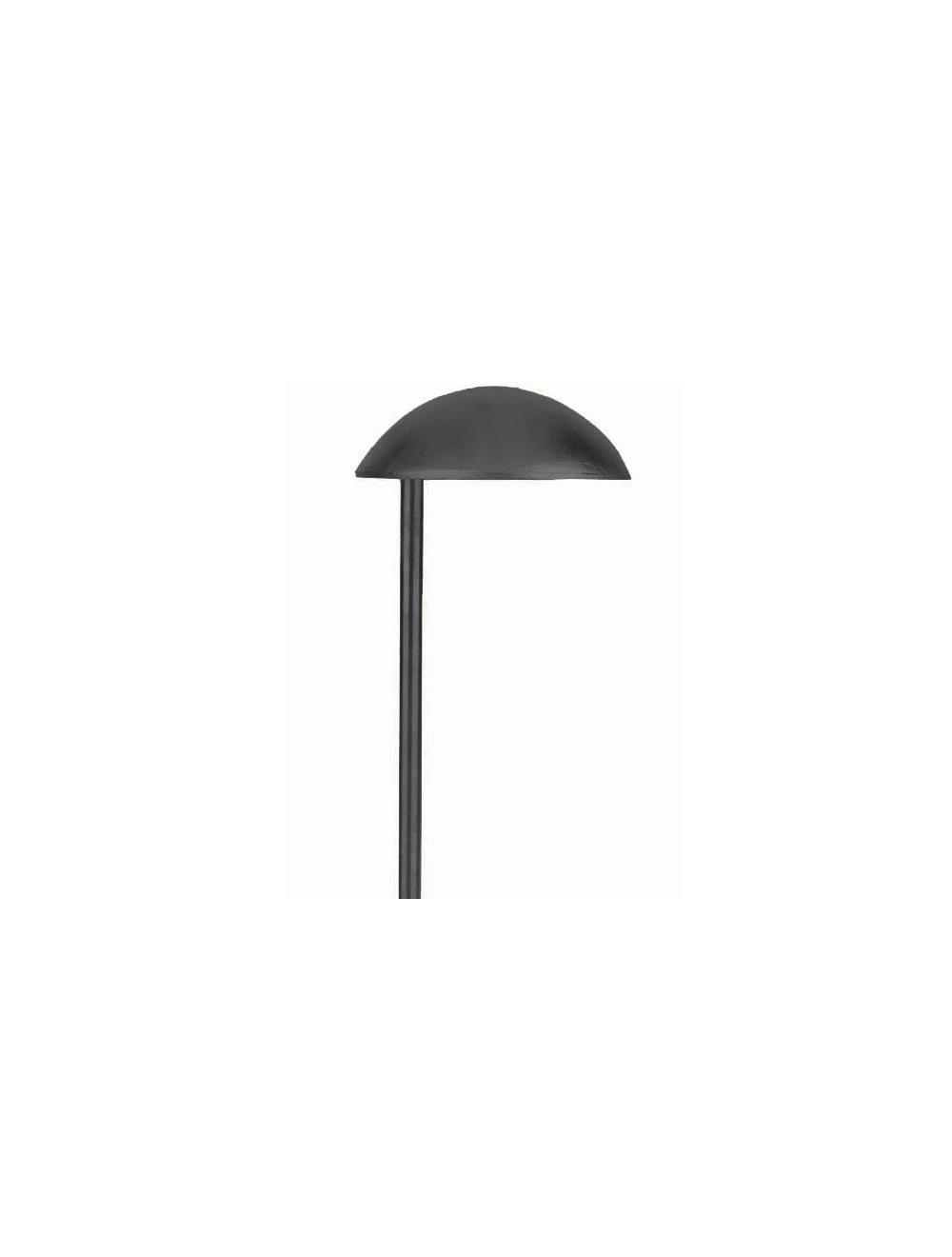

Focus PL-05 Cast Aluminum 5.5" Mushroom Pathway LED Light

CONSTRUCTION:  Cast aluminum or cast brass 5.5" Mushroom hat; matching extruded aluminum or brass stanchion

LAMP OPTIONS: LED 6 watt S8 type BA15s base, 12v, 50,000 hr, 500 lumens, 2600k warm or 6000k white (recommended, ships seperately, field installed), the difference between this LED and other brands LEDs is this lamp is replaceable in the future, keep the fixture, replace the lamp.  Also available is an 18w Halogen

SOCKET:  Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s); double contact bayonet base (Ba15d) for 120v, both with 200°C silicone lead wires

WIRING:  Black 3 foot 18/2 zip cord from base of fixture (12v only) For 25 foot 16/2 fixture lead wire add -25F to catalog number. 120v standard wiring

CONNECTION:  FA-05 Quick Connector (not supplied) from fixture to main cable  (12/2, 10/2 or 8/2 only) 12v only

MOUNTING:  FA-03 black 9" ABS stake, tapped 1/2" NPS

FINISH:  Aluminum - Black texture polyester powder coat. Optional finishes available Brass - Unfinished brass. Optional finishes available

Specification

Part Number PL-05-BLT
Manufacturer Focus Industries
Watts 6 Watts
Lumens 500
Lumens Per Watt 84
CRI 82
Color Temperature 2700 Kelvin, 6000 Kelvin
Beam Angle 360°
Input Voltage 12V
Dimmable No
Rated Life 50,000 hours +
Dimensions 19" x 5.5"
Certifications , ETL Listed, , ,
Manufacturer Warranty 3 Year
Specification Sheet

 PL-05 Data Sheet

Lead Time Build Item 7-10 Days, Add Ons/Changes 2-3 Weeks
